***** All free apps have been discontinued and are no longer available. *****
Quick Start With King Air 350/350i Free W&B App
Free software includes W&B only. Takeoff and Landing Performance are available for purchase.
When installing the software on your PC, make sure your firewall/anti-virus software allows your internet browser to download and install the software.
King Air C90/F90
(Win 10, 8, 7, Vista, XP)
King Air 250
(Win 10, 8, 7, Vista, XP)
King Air 350
(Win 10, 8, 7, Vista, XP)
After accepting the license agreement, select the aircraft model (350 or 300)
The software already contains some default numbers in the configuration settings form. All you need to do in order to see how the software works is to enter the crew and passengers and baggage weights and certain amount of fuel.
Press the "Compute" button to see the results.

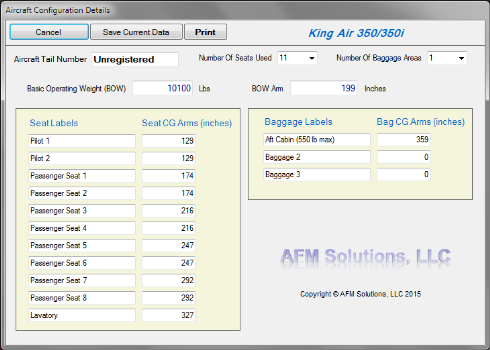

The "Configuration" form you can enter your aircraft's tail number.
If you want to change the Basic Operating Weight and the BOW CG arm, you must register your aircraft's tail number with us first
Use the "Up/Down" arrow keys to move between input boxes. You can also use the "Tab" key and the "Enter" key.

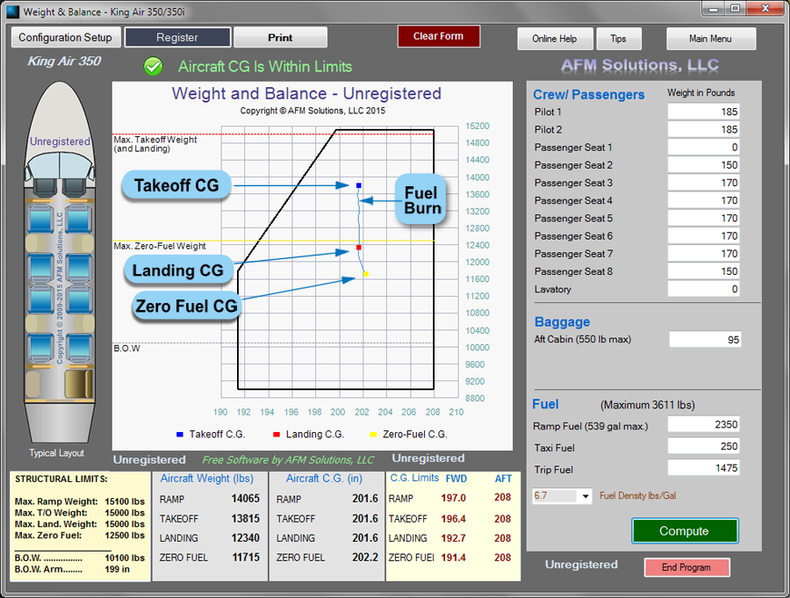

The computed results look like this
Free Weight and Balance Software for King Air 350/350i
If a quantity is out of limits there will be a warning message and that quantity will be shown in red.
In this example the Zero Fuel weight has not been exceeded, but the CG is too far aft. Therefore the result is shown in red.
To register, email us your:
Name, Company Name or Aircraft Operator's Name
Aircraft's Tail Number or Registration and Aircraft Type
We will add your aircraft to the database of users and you will receive a confirmation email from us.

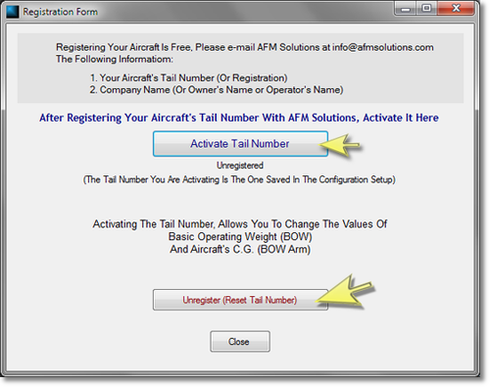

Then, click the "Register" button and activate your tail number.
Activating your tail number is free!
Make sure you have already typed your tail number in the Configuration Form (see below)
If your aircraft has had a change of tail number, you can unregister the current number and then register your new number
When you first start the app, the tail number reads "Unregistered"
First enter your aircraft's tail number and save it.
In order be able to change the BOW and the BOW Arm values, you need to register your tail number with AFM Solutions and then activate it.
Registering and activating is free!
After that you will be able to enter your aircraft's actual weight and CG.
At any time, you can rename or change the number of seats, number of baggage areas and their respective CG arms.
